Roll Snow Farther. Roll on to the Next Job Faster.

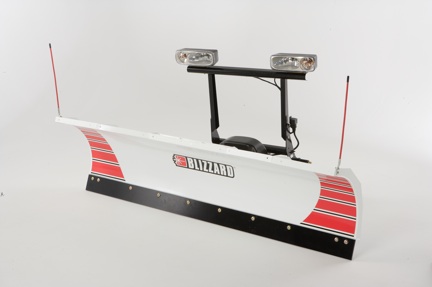

The HD Straight Blade is designed to get more work done in less time. Available in 7½’, 8’, 8½’ and 9’ widths.

Straight Blades Product Video
FLEETFLEX
SECURITY GUARD™ Anti-Theft System video
Strength for Superior Performance
Heavy-Duty A-Frame Construction
Shielded Hydraulic Components
Full-Trip Moldboard Design
Flared Moldboard Design
Torque Box Construction
POWERCOAT Baked-On Powder Coat Finish
Power Grip Hand-Held Control
STORM SEEKER™ Headlamps video
POWER HITCH™ 2 Attachment System video
Previous
Next
Click the thumbnails above to view Features & Benefits
Printable Specifications

Specifications

Model Blade Width Blade Height Blade Gauge Trip Springs Reinforcement Ribs Plowing Width (Full angle) Approx. Weight (Less Mount) Blade Shoes (adjustable) Cutting Edge Hitch System Vehicle
Application
7600HD 7' 6" 31" 12 4 Extension 6 Vertical 6' 9" 667 lb. Cast Iron (Optional) 1/2" x 6" POWER HITCH™ 2 4x4 pickup trucks
1/2 & 3/4 ton
8000HD 8' 31" 12 4 Extension 6 Vertical 7' 2" 684 lb. Cast Iron (Optional) 1/2" x 6" POWER HITCH™ 2 4x4 pickup trucks
3/4 & 1 ton
8600HD 8' 6" 31" 12 4 Extension 6 Vertical 7' 7" 701 lb. Cast Iron (Optional) 1/2" x 6" POWER HITCH™ 2 4x4 pickup trucks
3/4 & 1 ton
9000HD 9' 31" 12 4 Extension 6 Vertical 8' 1" 718 lb. Cast Iron (Optional) 1/2" x 6" POWER HITCH™ 2 4x4 pickup trucks
3/4 & 1 ton
